1. Essential Make-up and Architectural Design of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Product Class

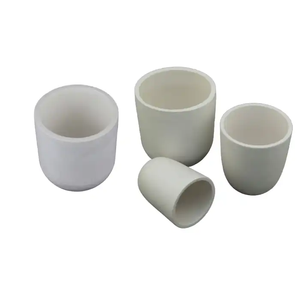

(Transparent Ceramics)
Quartz ceramics, also called integrated quartz or fused silica porcelains, are advanced not natural products derived from high-purity crystalline quartz (SiO â‚‚) that go through controlled melting and loan consolidation to form a thick, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike standard ceramics such as alumina or zirconia, which are polycrystalline and composed of several stages, quartz ceramics are predominantly composed of silicon dioxide in a network of tetrahedrally coordinated SiO â‚„ systems, offering remarkable chemical purity– commonly exceeding 99.9% SiO TWO.
The distinction between fused quartz and quartz ceramics depends on handling: while fused quartz is normally a fully amorphous glass developed by rapid air conditioning of liquified silica, quartz porcelains might entail regulated crystallization (devitrification) or sintering of fine quartz powders to achieve a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical toughness.
This hybrid approach combines the thermal and chemical stability of merged silica with enhanced fracture durability and dimensional security under mechanical lots.
1.2 Thermal and Chemical Stability Mechanisms
The phenomenal efficiency of quartz ceramics in severe atmospheres originates from the strong covalent Si– O bonds that develop a three-dimensional network with high bond energy (~ 452 kJ/mol), conferring amazing resistance to thermal deterioration and chemical strike.
These materials show an exceptionally reduced coefficient of thermal development– about 0.55 Ă— 10 â»â¶/ K over the range 20– 300 ° C– making them highly immune to thermal shock, a critical feature in applications involving quick temperature biking.
They keep structural stability from cryogenic temperature levels approximately 1200 ° C in air, and even greater in inert environments, before softening begins around 1600 ° C.
Quartz porcelains are inert to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, because of the stability of the SiO â‚‚ network, although they are at risk to attack by hydrofluoric acid and solid antacid at raised temperatures.
This chemical strength, incorporated with high electric resistivity and ultraviolet (UV) transparency, makes them perfect for usage in semiconductor handling, high-temperature heating systems, and optical systems exposed to severe conditions.
2. Manufacturing Processes and Microstructural Control
( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz ceramics includes advanced thermal processing strategies created to maintain purity while achieving desired thickness and microstructure.
One common method is electrical arc melting of high-purity quartz sand, adhered to by regulated cooling to develop merged quartz ingots, which can after that be machined right into components.
For sintered quartz ceramics, submicron quartz powders are compacted through isostatic pushing and sintered at temperature levels between 1100 ° C and 1400 ° C, frequently with marginal additives to promote densification without causing too much grain growth or stage makeover.
An essential difficulty in handling is avoiding devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite stages– which can endanger thermal shock resistance as a result of quantity changes throughout phase shifts.
Makers use specific temperature level control, rapid air conditioning cycles, and dopants such as boron or titanium to reduce undesirable formation and maintain a secure amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Fabrication
Recent advances in ceramic additive production (AM), particularly stereolithography (SLA) and binder jetting, have allowed the fabrication of complex quartz ceramic elements with high geometric accuracy.
In these processes, silica nanoparticles are suspended in a photosensitive resin or precisely bound layer-by-layer, followed by debinding and high-temperature sintering to achieve complete densification.
This strategy decreases product waste and enables the development of intricate geometries– such as fluidic channels, optical dental caries, or heat exchanger aspects– that are difficult or impossible to accomplish with conventional machining.
Post-processing methods, consisting of chemical vapor infiltration (CVI) or sol-gel finish, are sometimes put on seal surface area porosity and improve mechanical and environmental durability.
These advancements are broadening the application scope of quartz porcelains right into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and personalized high-temperature fixtures.
3. Functional Qualities and Efficiency in Extreme Environments
3.1 Optical Transparency and Dielectric Habits
Quartz porcelains exhibit one-of-a-kind optical properties, consisting of high transmission in the ultraviolet, noticeable, and near-infrared range (from ~ 180 nm to 2500 nm), making them indispensable in UV lithography, laser systems, and space-based optics.
This openness occurs from the absence of electronic bandgap shifts in the UV-visible variety and minimal scattering due to homogeneity and reduced porosity.
Additionally, they have excellent dielectric properties, with a low dielectric constant (~ 3.8 at 1 MHz) and very little dielectric loss, enabling their use as shielding parts in high-frequency and high-power digital systems, such as radar waveguides and plasma reactors.
Their ability to maintain electrical insulation at elevated temperature levels additionally enhances integrity in demanding electrical settings.
3.2 Mechanical Habits and Long-Term Sturdiness
Regardless of their high brittleness– an usual trait among porcelains– quartz ceramics show great mechanical toughness (flexural toughness as much as 100 MPa) and superb creep resistance at heats.
Their firmness (around 5.5– 6.5 on the Mohs range) offers resistance to surface abrasion, although treatment needs to be taken during handling to stay clear of damaging or crack proliferation from surface problems.
Ecological toughness is another essential benefit: quartz porcelains do not outgas dramatically in vacuum cleaner, withstand radiation damage, and maintain dimensional security over prolonged exposure to thermal biking and chemical atmospheres.
This makes them recommended materials in semiconductor manufacture chambers, aerospace sensors, and nuclear instrumentation where contamination and failing need to be decreased.
4. Industrial, Scientific, and Arising Technical Applications
4.1 Semiconductor and Photovoltaic Production Systems
In the semiconductor sector, quartz ceramics are ubiquitous in wafer processing devices, consisting of heater tubes, bell containers, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their purity prevents metal contamination of silicon wafers, while their thermal security guarantees uniform temperature level circulation throughout high-temperature handling steps.
In photovoltaic or pv production, quartz components are utilized in diffusion heaters and annealing systems for solar battery manufacturing, where consistent thermal profiles and chemical inertness are necessary for high yield and performance.
The need for bigger wafers and greater throughput has driven the development of ultra-large quartz ceramic frameworks with boosted homogeneity and reduced defect thickness.
4.2 Aerospace, Defense, and Quantum Innovation Assimilation
Past industrial processing, quartz porcelains are used in aerospace applications such as rocket guidance home windows, infrared domes, and re-entry car elements as a result of their capacity to withstand extreme thermal gradients and aerodynamic stress.
In defense systems, their openness to radar and microwave regularities makes them appropriate for radomes and sensor real estates.
A lot more lately, quartz ceramics have discovered functions in quantum innovations, where ultra-low thermal expansion and high vacuum cleaner compatibility are needed for precision optical cavities, atomic catches, and superconducting qubit units.
Their ability to reduce thermal drift makes certain long coherence times and high measurement precision in quantum computing and sensing systems.
In recap, quartz ceramics represent a course of high-performance materials that bridge the gap between conventional ceramics and specialty glasses.
Their exceptional mix of thermal stability, chemical inertness, optical transparency, and electrical insulation enables innovations running at the limitations of temperature level, purity, and accuracy.
As manufacturing techniques progress and require expands for materials with the ability of standing up to increasingly severe problems, quartz ceramics will certainly remain to play a fundamental role beforehand semiconductor, power, aerospace, and quantum systems.
