1. Chemical and Structural Basics of Boron Carbide

1.1 Crystallography and Stoichiometric Irregularity

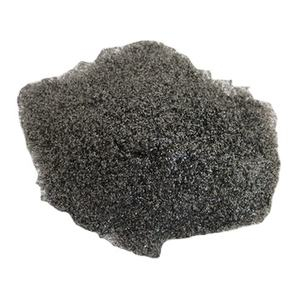

(Boron Carbide Podwer)

Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its phenomenal firmness, thermal security, and neutron absorption capability, placing it among the hardest recognized products– gone beyond only by cubic boron nitride and diamond.

Its crystal structure is based upon a rhombohedral lattice composed of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) interconnected by direct C-B-C or C-B-B chains, developing a three-dimensional covalent network that imparts amazing mechanical toughness.

Unlike numerous porcelains with repaired stoichiometry, boron carbide displays a wide range of compositional versatility, commonly ranging from B ₄ C to B ₁₀. TWO C, because of the substitution of carbon atoms within the icosahedra and structural chains.

This irregularity affects essential properties such as solidity, electrical conductivity, and thermal neutron capture cross-section, allowing for residential property tuning based upon synthesis problems and designated application.

The presence of inherent defects and problem in the atomic plan also adds to its unique mechanical habits, consisting of a phenomenon called “amorphization under anxiety” at high stress, which can limit efficiency in extreme influence scenarios.

1.2 Synthesis and Powder Morphology Control

Boron carbide powder is primarily produced through high-temperature carbothermal decrease of boron oxide (B ₂ O THREE) with carbon sources such as oil coke or graphite in electric arc heating systems at temperature levels in between 1800 ° C and 2300 ° C.

The response continues as: B ₂ O FOUR + 7C → 2B ₄ C + 6CO, generating rugged crystalline powder that requires succeeding milling and purification to attain fine, submicron or nanoscale particles appropriate for advanced applications.

Alternative techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer courses to higher pureness and regulated fragment size circulation, though they are commonly restricted by scalability and price.

Powder characteristics– consisting of particle size, form, agglomeration state, and surface chemistry– are vital specifications that influence sinterability, packaging density, and last component performance.

As an example, nanoscale boron carbide powders display improved sintering kinetics due to high surface power, allowing densification at lower temperatures, but are prone to oxidation and require protective ambiences throughout handling and processing.

Surface functionalization and finish with carbon or silicon-based layers are progressively employed to boost dispersibility and hinder grain growth throughout consolidation.

( Boron Carbide Podwer)

2. Mechanical Qualities and Ballistic Performance Mechanisms

2.1 Hardness, Fracture Toughness, and Wear Resistance

Boron carbide powder is the forerunner to among one of the most efficient light-weight armor materials offered, owing to its Vickers firmness of approximately 30– 35 GPa, which allows it to erode and blunt inbound projectiles such as bullets and shrapnel.

When sintered right into thick ceramic floor tiles or incorporated right into composite shield systems, boron carbide outperforms steel and alumina on a weight-for-weight basis, making it optimal for workers protection, automobile shield, and aerospace shielding.

Nevertheless, in spite of its high firmness, boron carbide has relatively low crack durability (2.5– 3.5 MPa · m 1ST / TWO), making it prone to fracturing under localized influence or duplicated loading.

This brittleness is exacerbated at high strain rates, where dynamic failing mechanisms such as shear banding and stress-induced amorphization can result in tragic loss of structural stability.

Continuous research study focuses on microstructural engineering– such as introducing additional phases (e.g., silicon carbide or carbon nanotubes), producing functionally graded compounds, or making ordered styles– to reduce these restrictions.

2.2 Ballistic Power Dissipation and Multi-Hit Capability

In individual and vehicular shield systems, boron carbide tiles are usually backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that absorb recurring kinetic power and consist of fragmentation.

Upon influence, the ceramic layer fractures in a controlled manner, dissipating power through devices including fragment fragmentation, intergranular cracking, and phase change.

The great grain framework stemmed from high-purity, nanoscale boron carbide powder improves these power absorption procedures by increasing the density of grain borders that hinder split propagation.

Current advancements in powder handling have caused the advancement of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that improve multi-hit resistance– an essential demand for army and police applications.

These engineered products preserve protective efficiency also after initial influence, resolving an essential constraint of monolithic ceramic shield.

3. Neutron Absorption and Nuclear Design Applications

3.1 Interaction with Thermal and Fast Neutrons

Past mechanical applications, boron carbide powder plays an essential role in nuclear technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).

When integrated right into control poles, protecting materials, or neutron detectors, boron carbide effectively controls fission responses by catching neutrons and undertaking the ¹⁰ B( n, α) seven Li nuclear response, generating alpha particles and lithium ions that are conveniently contained.

This property makes it vital in pressurized water reactors (PWRs), boiling water reactors (BWRs), and research study reactors, where precise neutron flux control is necessary for risk-free operation.

The powder is usually made into pellets, finishings, or spread within steel or ceramic matrices to create composite absorbers with customized thermal and mechanical properties.

3.2 Security Under Irradiation and Long-Term Efficiency

An essential benefit of boron carbide in nuclear environments is its high thermal security and radiation resistance as much as temperature levels exceeding 1000 ° C.

Nonetheless, prolonged neutron irradiation can lead to helium gas accumulation from the (n, α) response, causing swelling, microcracking, and degradation of mechanical integrity– a sensation referred to as “helium embrittlement.”

To alleviate this, researchers are establishing doped boron carbide formulas (e.g., with silicon or titanium) and composite designs that fit gas launch and keep dimensional stability over extensive life span.

In addition, isotopic enrichment of ¹⁰ B improves neutron capture effectiveness while decreasing the overall material quantity required, improving reactor design adaptability.

4. Emerging and Advanced Technological Integrations

4.1 Additive Manufacturing and Functionally Rated Parts

Recent development in ceramic additive production has actually made it possible for the 3D printing of intricate boron carbide elements making use of strategies such as binder jetting and stereolithography.

In these procedures, great boron carbide powder is selectively bound layer by layer, complied with by debinding and high-temperature sintering to achieve near-full density.

This ability enables the construction of personalized neutron shielding geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is integrated with metals or polymers in functionally rated styles.

Such architectures enhance performance by integrating firmness, strength, and weight performance in a single element, opening up new frontiers in defense, aerospace, and nuclear design.

4.2 High-Temperature and Wear-Resistant Industrial Applications

Beyond defense and nuclear industries, boron carbide powder is used in rough waterjet reducing nozzles, sandblasting linings, and wear-resistant finishings due to its extreme firmness and chemical inertness.

It outperforms tungsten carbide and alumina in abrasive environments, particularly when revealed to silica sand or other hard particulates.

In metallurgy, it works as a wear-resistant liner for hoppers, chutes, and pumps managing unpleasant slurries.

Its low density (~ 2.52 g/cm FIVE) additional boosts its allure in mobile and weight-sensitive commercial equipment.

As powder high quality enhances and processing modern technologies advancement, boron carbide is positioned to increase right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.

Finally, boron carbide powder stands for a cornerstone material in extreme-environment design, integrating ultra-high hardness, neutron absorption, and thermal resilience in a solitary, flexible ceramic system.

Its duty in safeguarding lives, making it possible for nuclear energy, and progressing industrial effectiveness underscores its strategic value in modern innovation.

With continued technology in powder synthesis, microstructural layout, and manufacturing integration, boron carbide will continue to be at the forefront of advanced materials growth for years ahead.
