1. Essential Make-up and Structural Characteristics of Quartz Ceramics

1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

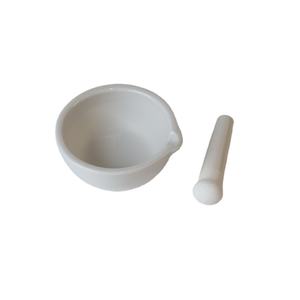

(Quartz Ceramics)

Quartz ceramics, likewise called integrated silica or integrated quartz, are a class of high-performance not natural products stemmed from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) form.

Unlike traditional porcelains that count on polycrystalline structures, quartz porcelains are identified by their complete lack of grain boundaries due to their lustrous, isotropic network of SiO four tetrahedra interconnected in a three-dimensional arbitrary network.

This amorphous structure is attained with high-temperature melting of all-natural quartz crystals or synthetic silica forerunners, complied with by fast cooling to avoid formation.

The resulting material includes commonly over 99.9% SiO ₂, with trace contaminations such as alkali steels (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million degrees to protect optical quality, electrical resistivity, and thermal performance.

The absence of long-range order gets rid of anisotropic behavior, making quartz ceramics dimensionally steady and mechanically consistent in all instructions– an important benefit in precision applications.

1.2 Thermal Behavior and Resistance to Thermal Shock

Among one of the most defining functions of quartz porcelains is their exceptionally low coefficient of thermal expansion (CTE), normally around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.

This near-zero development arises from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal anxiety without breaking, allowing the material to endure rapid temperature adjustments that would crack conventional porcelains or metals.

Quartz porcelains can sustain thermal shocks going beyond 1000 ° C, such as straight immersion in water after heating to heated temperatures, without breaking or spalling.

This residential property makes them essential in settings entailing duplicated home heating and cooling down cycles, such as semiconductor processing heaters, aerospace elements, and high-intensity lighting systems.

In addition, quartz porcelains maintain structural honesty approximately temperature levels of roughly 1100 ° C in continual service, with short-term exposure tolerance approaching 1600 ° C in inert ambiences.

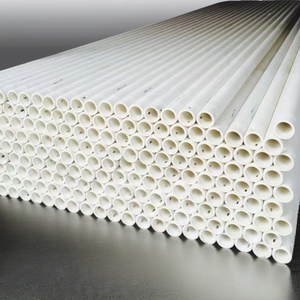

( Quartz Ceramics)

Beyond thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though extended exposure over 1200 ° C can initiate surface area formation into cristobalite, which might compromise mechanical strength because of quantity modifications during phase shifts.

2. Optical, Electric, and Chemical Qualities of Fused Silica Equipment

2.1 Broadband Transparency and Photonic Applications

Quartz porcelains are renowned for their remarkable optical transmission across a broad spooky variety, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.

This transparency is enabled by the absence of impurities and the homogeneity of the amorphous network, which decreases light scattering and absorption.

High-purity artificial integrated silica, created via fire hydrolysis of silicon chlorides, achieves even better UV transmission and is used in important applications such as excimer laser optics, photolithography lenses, and space-based telescopes.

The product’s high laser damage threshold– standing up to breakdown under intense pulsed laser irradiation– makes it excellent for high-energy laser systems made use of in fusion research and commercial machining.

In addition, its low autofluorescence and radiation resistance guarantee reliability in scientific instrumentation, including spectrometers, UV healing systems, and nuclear surveillance gadgets.

2.2 Dielectric Efficiency and Chemical Inertness

From an electrical point ofview, quartz ceramics are superior insulators with quantity resistivity exceeding 10 ¹⁸ Ω · cm at space temperature level and a dielectric constant of around 3.8 at 1 MHz.

Their low dielectric loss tangent (tan δ < 0.0001) makes certain very little power dissipation in high-frequency and high-voltage applications, making them ideal for microwave home windows, radar domes, and protecting substratums in electronic settings up.

These residential or commercial properties remain steady over a broad temperature level array, unlike several polymers or conventional ceramics that break down electrically under thermal stress and anxiety.

Chemically, quartz porcelains exhibit remarkable inertness to most acids, including hydrochloric, nitric, and sulfuric acids, as a result of the stability of the Si– O bond.

However, they are at risk to strike by hydrofluoric acid (HF) and strong antacids such as warm salt hydroxide, which damage the Si– O– Si network.

This discerning sensitivity is made use of in microfabrication procedures where controlled etching of fused silica is required.

In aggressive industrial atmospheres– such as chemical handling, semiconductor wet benches, and high-purity liquid handling– quartz porcelains function as linings, view glasses, and activator parts where contamination must be minimized.

3. Manufacturing Processes and Geometric Engineering of Quartz Porcelain Parts

3.1 Melting and Developing Strategies

The production of quartz porcelains involves several specialized melting approaches, each customized to particular purity and application requirements.

Electric arc melting makes use of high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, producing big boules or tubes with exceptional thermal and mechanical properties.

Fire combination, or combustion synthesis, involves burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen flame, depositing great silica particles that sinter right into a transparent preform– this method produces the highest optical quality and is made use of for artificial merged silica.

Plasma melting offers an alternate route, providing ultra-high temperatures and contamination-free handling for particular niche aerospace and defense applications.

Once thawed, quartz porcelains can be shaped via accuracy casting, centrifugal forming (for tubes), or CNC machining of pre-sintered spaces.

As a result of their brittleness, machining calls for ruby tools and mindful control to stay clear of microcracking.

3.2 Accuracy Construction and Surface Ending Up

Quartz ceramic parts are usually fabricated right into complicated geometries such as crucibles, tubes, rods, home windows, and custom-made insulators for semiconductor, photovoltaic or pv, and laser industries.

Dimensional accuracy is important, particularly in semiconductor production where quartz susceptors and bell containers have to keep exact alignment and thermal uniformity.

Surface completing plays a crucial function in efficiency; refined surface areas reduce light scattering in optical elements and lessen nucleation sites for devitrification in high-temperature applications.

Engraving with buffered HF services can generate controlled surface appearances or eliminate harmed layers after machining.

For ultra-high vacuum (UHV) systems, quartz ceramics are cleansed and baked to get rid of surface-adsorbed gases, making sure very little outgassing and compatibility with delicate processes like molecular beam epitaxy (MBE).

4. Industrial and Scientific Applications of Quartz Ceramics

4.1 Duty in Semiconductor and Photovoltaic Production

Quartz porcelains are fundamental products in the fabrication of integrated circuits and solar batteries, where they work as heater tubes, wafer boats (susceptors), and diffusion chambers.

Their ability to stand up to high temperatures in oxidizing, minimizing, or inert atmospheres– incorporated with low metallic contamination– guarantees procedure pureness and yield.

Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz components keep dimensional stability and withstand warping, protecting against wafer breakage and imbalance.

In photovoltaic production, quartz crucibles are used to expand monocrystalline silicon ingots through the Czochralski process, where their pureness directly influences the electrical quality of the last solar batteries.

4.2 Usage in Lights, Aerospace, and Analytical Instrumentation

In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes consist of plasma arcs at temperature levels surpassing 1000 ° C while sending UV and noticeable light effectively.

Their thermal shock resistance stops failure during rapid light ignition and shutdown cycles.

In aerospace, quartz ceramics are used in radar windows, sensing unit real estates, and thermal security systems due to their low dielectric constant, high strength-to-density proportion, and stability under aerothermal loading.

In logical chemistry and life sciences, merged silica veins are essential in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness stops example adsorption and guarantees precise separation.

Furthermore, quartz crystal microbalances (QCMs), which rely on the piezoelectric residential or commercial properties of crystalline quartz (unique from fused silica), use quartz ceramics as safety housings and shielding assistances in real-time mass picking up applications.

To conclude, quartz porcelains stand for an one-of-a-kind crossway of extreme thermal strength, optical openness, and chemical purity.

Their amorphous structure and high SiO two material make it possible for performance in settings where standard products fail, from the heart of semiconductor fabs to the side of area.

As modern technology advances towards greater temperature levels, better precision, and cleaner processes, quartz porcelains will certainly continue to serve as a critical enabler of development throughout science and market.
