1. Material Principles and Crystallographic Feature

1.1 Phase Make-up and Polymorphic Actions

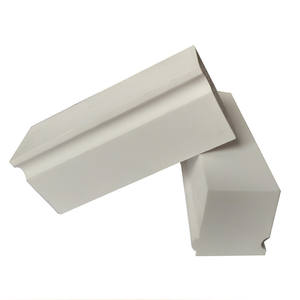

(Alumina Ceramic Blocks)

Alumina (Al ₂ O SIX), especially in its α-phase type, is among the most extensively utilized technological ceramics as a result of its exceptional equilibrium of mechanical strength, chemical inertness, and thermal stability.

While light weight aluminum oxide exists in numerous metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically stable crystalline structure at heats, defined by a thick hexagonal close-packed (HCP) setup of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial sites.

This purchased framework, referred to as diamond, provides high latticework power and solid ionic-covalent bonding, causing a melting factor of around 2054 ° C and resistance to phase improvement under extreme thermal conditions.

The shift from transitional aluminas to α-Al two O three normally occurs above 1100 ° C and is accompanied by considerable quantity shrinkage and loss of surface area, making stage control vital during sintering.

High-purity α-alumina blocks (> 99.5% Al ₂ O FOUR) show exceptional performance in severe atmospheres, while lower-grade compositions (90– 95%) may include additional phases such as mullite or glassy grain limit phases for affordable applications.

1.2 Microstructure and Mechanical Integrity

The efficiency of alumina ceramic blocks is greatly influenced by microstructural features consisting of grain dimension, porosity, and grain border cohesion.

Fine-grained microstructures (grain size < 5 µm) usually offer higher flexural stamina (approximately 400 MPa) and boosted crack toughness compared to grainy counterparts, as smaller sized grains hinder fracture proliferation.

Porosity, even at reduced levels (1– 5%), substantially reduces mechanical toughness and thermal conductivity, necessitating full densification with pressure-assisted sintering approaches such as warm pushing or hot isostatic pressing (HIP).

Additives like MgO are typically introduced in trace quantities (≈ 0.1 wt%) to prevent uncommon grain growth during sintering, guaranteeing uniform microstructure and dimensional security.

The resulting ceramic blocks exhibit high solidity (≈ 1800 HV), excellent wear resistance, and low creep rates at raised temperatures, making them suitable for load-bearing and unpleasant atmospheres.

2. Production and Processing Techniques

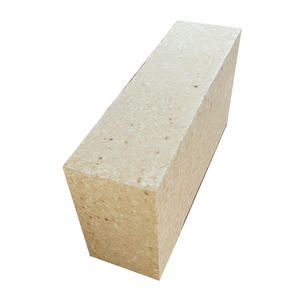

( Alumina Ceramic Blocks)

2.1 Powder Prep Work and Shaping Techniques

The production of alumina ceramic blocks begins with high-purity alumina powders stemmed from calcined bauxite via the Bayer process or manufactured via rainfall or sol-gel routes for greater pureness.

Powders are milled to achieve narrow particle size circulation, boosting packing thickness and sinterability.

Forming right into near-net geometries is completed with different creating techniques: uniaxial pushing for simple blocks, isostatic pressing for consistent density in complex forms, extrusion for lengthy areas, and slip casting for complex or large parts.

Each method affects eco-friendly body thickness and homogeneity, which directly effect last buildings after sintering.

For high-performance applications, advanced creating such as tape casting or gel-casting may be utilized to attain premium dimensional control and microstructural harmony.

2.2 Sintering and Post-Processing

Sintering in air at temperatures in between 1600 ° C and 1750 ° C allows diffusion-driven densification, where fragment necks grow and pores reduce, bring about a completely thick ceramic body.

Environment control and precise thermal profiles are essential to stop bloating, bending, or differential shrinking.

Post-sintering operations include diamond grinding, lapping, and polishing to achieve tight tolerances and smooth surface coatings called for in sealing, gliding, or optical applications.

Laser cutting and waterjet machining permit exact personalization of block geometry without generating thermal stress and anxiety.

Surface treatments such as alumina finish or plasma spraying can even more enhance wear or corrosion resistance in specific solution problems.

3. Practical Qualities and Performance Metrics

3.1 Thermal and Electrical Actions

Alumina ceramic blocks show modest thermal conductivity (20– 35 W/(m · K)), significantly greater than polymers and glasses, allowing reliable warm dissipation in digital and thermal monitoring systems.

They keep structural honesty as much as 1600 ° C in oxidizing environments, with low thermal expansion (≈ 8 ppm/K), adding to outstanding thermal shock resistance when correctly created.

Their high electric resistivity (> 10 ¹⁴ Ω · cm) and dielectric toughness (> 15 kV/mm) make them suitable electrical insulators in high-voltage settings, consisting of power transmission, switchgear, and vacuum cleaner systems.

Dielectric continuous (εᵣ ≈ 9– 10) stays steady over a vast frequency range, sustaining use in RF and microwave applications.

These residential or commercial properties make it possible for alumina blocks to operate reliably in settings where natural materials would certainly weaken or stop working.

3.2 Chemical and Environmental Durability

One of one of the most important features of alumina blocks is their extraordinary resistance to chemical strike.

They are extremely inert to acids (other than hydrofluoric and warm phosphoric acids), alkalis (with some solubility in solid caustics at elevated temperatures), and molten salts, making them appropriate for chemical processing, semiconductor fabrication, and contamination control devices.

Their non-wetting behavior with several molten metals and slags permits usage in crucibles, thermocouple sheaths, and heater linings.

Additionally, alumina is non-toxic, biocompatible, and radiation-resistant, broadening its utility into medical implants, nuclear securing, and aerospace parts.

Minimal outgassing in vacuum environments further certifies it for ultra-high vacuum (UHV) systems in research and semiconductor production.

4. Industrial Applications and Technological Combination

4.1 Architectural and Wear-Resistant Parts

Alumina ceramic blocks function as critical wear parts in sectors varying from extracting to paper manufacturing.

They are utilized as liners in chutes, receptacles, and cyclones to stand up to abrasion from slurries, powders, and granular materials, considerably extending life span compared to steel.

In mechanical seals and bearings, alumina obstructs give low friction, high solidity, and rust resistance, decreasing upkeep and downtime.

Custom-shaped blocks are incorporated right into reducing tools, dies, and nozzles where dimensional stability and edge retention are critical.

Their light-weight nature (density ≈ 3.9 g/cm ³) additionally adds to power savings in relocating parts.

4.2 Advanced Design and Arising Makes Use Of

Beyond typical roles, alumina blocks are increasingly used in sophisticated technological systems.

In electronics, they operate as protecting substrates, heat sinks, and laser tooth cavity elements due to their thermal and dielectric buildings.

In power systems, they function as solid oxide fuel cell (SOFC) components, battery separators, and combination activator plasma-facing materials.

Additive manufacturing of alumina via binder jetting or stereolithography is arising, making it possible for complicated geometries previously unattainable with standard creating.

Hybrid structures integrating alumina with metals or polymers via brazing or co-firing are being created for multifunctional systems in aerospace and protection.

As material scientific research breakthroughs, alumina ceramic blocks remain to evolve from passive structural components into active elements in high-performance, lasting engineering remedies.

In recap, alumina ceramic blocks stand for a fundamental class of sophisticated ceramics, combining durable mechanical performance with remarkable chemical and thermal security.

Their adaptability throughout industrial, digital, and clinical domain names underscores their enduring worth in contemporary design and modern technology advancement.
