1. Material Basics and Morphological Advantages

1.1 Crystal Framework and Chemical Structure

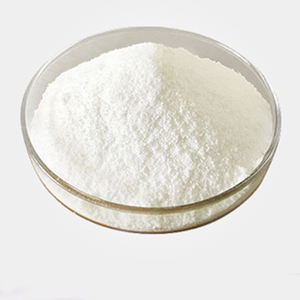

(Spherical alumina)

Spherical alumina, or spherical aluminum oxide (Al ₂ O FOUR), is an artificially created ceramic material characterized by a well-defined globular morphology and a crystalline structure mainly in the alpha (α) stage.

Alpha-alumina, one of the most thermodynamically steady polymorph, includes a hexagonal close-packed setup of oxygen ions with light weight aluminum ions occupying two-thirds of the octahedral interstices, leading to high latticework power and exceptional chemical inertness.

This stage exhibits outstanding thermal stability, maintaining stability up to 1800 ° C, and withstands response with acids, antacid, and molten metals under the majority of commercial problems.

Unlike uneven or angular alumina powders stemmed from bauxite calcination, spherical alumina is crafted through high-temperature procedures such as plasma spheroidization or fire synthesis to achieve uniform roundness and smooth surface area appearance.

The makeover from angular forerunner fragments– frequently calcined bauxite or gibbsite– to dense, isotropic spheres removes sharp edges and internal porosity, improving packing effectiveness and mechanical sturdiness.

High-purity qualities (≥ 99.5% Al Two O TWO) are essential for electronic and semiconductor applications where ionic contamination need to be reduced.

1.2 Bit Geometry and Packing Habits

The specifying attribute of spherical alumina is its near-perfect sphericity, generally quantified by a sphericity index > 0.9, which substantially influences its flowability and packing density in composite systems.

In contrast to angular particles that interlock and produce spaces, spherical particles roll previous one another with very little friction, enabling high solids loading during formula of thermal interface products (TIMs), encapsulants, and potting substances.

This geometric uniformity allows for optimum theoretical packaging densities going beyond 70 vol%, much exceeding the 50– 60 vol% typical of uneven fillers.

Higher filler loading directly converts to enhanced thermal conductivity in polymer matrices, as the continuous ceramic network provides effective phonon transportation paths.

In addition, the smooth surface area lowers wear on processing tools and lessens viscosity rise throughout mixing, enhancing processability and diffusion stability.

The isotropic nature of balls also prevents orientation-dependent anisotropy in thermal and mechanical homes, making sure constant performance in all directions.

2. Synthesis Techniques and Quality Assurance

2.1 High-Temperature Spheroidization Strategies

The manufacturing of round alumina mainly relies upon thermal techniques that melt angular alumina particles and permit surface area stress to improve them into balls.

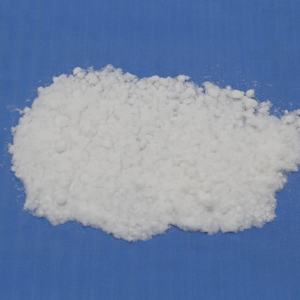

( Spherical alumina)

Plasma spheroidization is one of the most widely utilized industrial method, where alumina powder is infused into a high-temperature plasma flame (approximately 10,000 K), creating rapid melting and surface tension-driven densification into excellent spheres.

The molten beads strengthen rapidly throughout trip, developing dense, non-porous fragments with consistent size circulation when combined with specific category.

Different techniques include flame spheroidization making use of oxy-fuel torches and microwave-assisted heating, though these usually supply lower throughput or less control over bit dimension.

The starting material’s pureness and particle size distribution are vital; submicron or micron-scale forerunners produce likewise sized spheres after handling.

Post-synthesis, the product undertakes rigorous sieving, electrostatic separation, and laser diffraction evaluation to ensure tight bit dimension circulation (PSD), usually ranging from 1 to 50 µm depending on application.

2.2 Surface Adjustment and Practical Tailoring

To enhance compatibility with organic matrices such as silicones, epoxies, and polyurethanes, round alumina is usually surface-treated with coupling representatives.

Silane coupling representatives– such as amino, epoxy, or vinyl functional silanes– type covalent bonds with hydroxyl teams on the alumina surface while offering natural performance that communicates with the polymer matrix.

This treatment improves interfacial bond, lowers filler-matrix thermal resistance, and stops jumble, causing even more uniform composites with premium mechanical and thermal performance.

Surface finishes can likewise be crafted to give hydrophobicity, improve diffusion in nonpolar materials, or make it possible for stimuli-responsive actions in smart thermal products.

Quality assurance includes dimensions of wager surface area, tap density, thermal conductivity (usually 25– 35 W/(m · K )for thick α-alumina), and contamination profiling through ICP-MS to omit Fe, Na, and K at ppm levels.

Batch-to-batch uniformity is essential for high-reliability applications in electronics and aerospace.

3. Thermal and Mechanical Performance in Composites

3.1 Thermal Conductivity and User Interface Design

Round alumina is mostly utilized as a high-performance filler to improve the thermal conductivity of polymer-based products utilized in digital product packaging, LED lights, and power components.

While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), loading with 60– 70 vol% spherical alumina can enhance this to 2– 5 W/(m · K), enough for efficient warmth dissipation in compact devices.

The high intrinsic thermal conductivity of α-alumina, combined with very little phonon spreading at smooth particle-particle and particle-matrix interfaces, makes it possible for effective warm transfer with percolation networks.

Interfacial thermal resistance (Kapitza resistance) remains a restricting factor, yet surface area functionalization and optimized dispersion techniques help lessen this barrier.

In thermal interface products (TIMs), spherical alumina reduces contact resistance between heat-generating components (e.g., CPUs, IGBTs) and warm sinks, stopping getting too hot and prolonging gadget life-span.

Its electric insulation (resistivity > 10 ¹² Ω · cm) makes sure security in high-voltage applications, differentiating it from conductive fillers like steel or graphite.

3.2 Mechanical Security and Reliability

Past thermal performance, spherical alumina enhances the mechanical effectiveness of compounds by raising hardness, modulus, and dimensional security.

The round shape distributes tension consistently, lowering split initiation and breeding under thermal cycling or mechanical tons.

This is especially vital in underfill products and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal growth (CTE) mismatch can induce delamination.

By readjusting filler loading and particle dimension circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published circuit boards, minimizing thermo-mechanical stress.

Additionally, the chemical inertness of alumina prevents destruction in damp or destructive settings, ensuring lasting reliability in auto, commercial, and outside electronics.

4. Applications and Technical Advancement

4.1 Electronics and Electric Lorry Solutions

Spherical alumina is an essential enabler in the thermal administration of high-power electronics, consisting of shielded entrance bipolar transistors (IGBTs), power supplies, and battery management systems in electric cars (EVs).

In EV battery packs, it is incorporated right into potting compounds and stage change materials to prevent thermal runaway by uniformly distributing warm across cells.

LED suppliers utilize it in encapsulants and second optics to preserve lumen result and shade consistency by decreasing junction temperature level.

In 5G facilities and information facilities, where heat change thickness are climbing, spherical alumina-filled TIMs ensure secure procedure of high-frequency chips and laser diodes.

Its function is increasing into advanced product packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and ingrained die systems.

4.2 Emerging Frontiers and Sustainable Innovation

Future advancements focus on hybrid filler systems integrating spherical alumina with boron nitride, light weight aluminum nitride, or graphene to achieve collaborating thermal performance while maintaining electrical insulation.

Nano-spherical alumina (sub-100 nm) is being discovered for transparent porcelains, UV layers, and biomedical applications, though difficulties in dispersion and price stay.

Additive production of thermally conductive polymer compounds utilizing spherical alumina allows complicated, topology-optimized warmth dissipation frameworks.

Sustainability initiatives consist of energy-efficient spheroidization processes, recycling of off-spec product, and life-cycle analysis to reduce the carbon footprint of high-performance thermal products.

In recap, round alumina represents a vital engineered material at the intersection of porcelains, compounds, and thermal science.

Its one-of-a-kind combination of morphology, pureness, and performance makes it essential in the continuous miniaturization and power increase of contemporary electronic and power systems.
