1. Material Fundamentals and Architectural Feature

1.1 Crystal Chemistry and Polymorphism

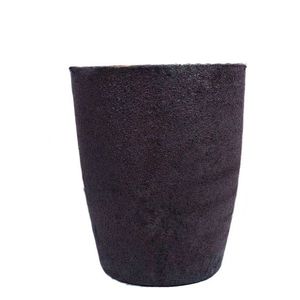

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral lattice, developing one of one of the most thermally and chemically durable materials understood.

It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal structures being most relevant for high-temperature applications.

The solid Si– C bonds, with bond energy surpassing 300 kJ/mol, give extraordinary solidity, thermal conductivity, and resistance to thermal shock and chemical assault.

In crucible applications, sintered or reaction-bonded SiC is liked as a result of its ability to preserve architectural stability under extreme thermal gradients and destructive molten atmospheres.

Unlike oxide ceramics, SiC does not undertake disruptive phase shifts up to its sublimation factor (~ 2700 ° C), making it optimal for sustained procedure above 1600 ° C.

1.2 Thermal and Mechanical Efficiency

A specifying quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes consistent warm distribution and decreases thermal stress and anxiety throughout quick home heating or air conditioning.

This residential property contrasts greatly with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to splitting under thermal shock.

SiC likewise displays excellent mechanical toughness at elevated temperatures, retaining over 80% of its room-temperature flexural toughness (as much as 400 MPa) even at 1400 ° C.

Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) additionally boosts resistance to thermal shock, a crucial consider duplicated biking between ambient and operational temperatures.

Additionally, SiC shows exceptional wear and abrasion resistance, making certain long service life in settings entailing mechanical handling or rough thaw circulation.

2. Production Techniques and Microstructural Control

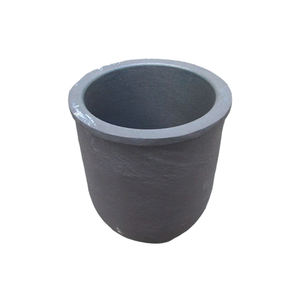

( Silicon Carbide Crucibles)

2.1 Sintering Techniques and Densification Techniques

Business SiC crucibles are mainly produced through pressureless sintering, reaction bonding, or warm pushing, each offering distinct benefits in expense, purity, and efficiency.

Pressureless sintering includes compacting fine SiC powder with sintering help such as boron and carbon, followed by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to achieve near-theoretical density.

This approach returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy handling.

Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with molten silicon, which reacts to create β-SiC sitting, resulting in a compound of SiC and recurring silicon.

While slightly lower in thermal conductivity because of metallic silicon additions, RBSC supplies superb dimensional security and lower production price, making it prominent for massive industrial usage.

Hot-pressed SiC, though a lot more pricey, supplies the highest possible thickness and purity, scheduled for ultra-demanding applications such as single-crystal growth.

2.2 Surface Top Quality and Geometric Accuracy

Post-sintering machining, including grinding and splashing, makes certain accurate dimensional tolerances and smooth interior surfaces that decrease nucleation websites and reduce contamination risk.

Surface area roughness is thoroughly controlled to avoid melt bond and help with very easy release of strengthened products.

Crucible geometry– such as wall thickness, taper angle, and lower curvature– is optimized to stabilize thermal mass, architectural toughness, and compatibility with furnace heating elements.

Custom layouts fit specific melt volumes, home heating accounts, and product reactivity, making certain optimal efficiency throughout diverse industrial procedures.

Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, confirms microstructural homogeneity and lack of issues like pores or cracks.

3. Chemical Resistance and Interaction with Melts

3.1 Inertness in Hostile Atmospheres

SiC crucibles display remarkable resistance to chemical assault by molten metals, slags, and non-oxidizing salts, outshining conventional graphite and oxide ceramics.

They are stable in contact with liquified light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution due to low interfacial power and formation of safety surface oxides.

In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that can weaken electronic homes.

Nevertheless, under highly oxidizing problems or in the existence of alkaline changes, SiC can oxidize to develop silica (SiO ₂), which may react better to create low-melting-point silicates.

Consequently, SiC is finest fit for neutral or minimizing atmospheres, where its stability is taken full advantage of.

3.2 Limitations and Compatibility Considerations

Despite its robustness, SiC is not widely inert; it responds with particular molten materials, particularly iron-group steels (Fe, Ni, Carbon monoxide) at heats via carburization and dissolution processes.

In liquified steel processing, SiC crucibles degrade rapidly and are therefore avoided.

In a similar way, antacids and alkaline earth metals (e.g., Li, Na, Ca) can decrease SiC, launching carbon and forming silicides, restricting their use in battery product synthesis or reactive steel spreading.

For molten glass and porcelains, SiC is usually suitable but may present trace silicon right into very delicate optical or electronic glasses.

Understanding these material-specific interactions is important for choosing the ideal crucible type and ensuring procedure purity and crucible durability.

4. Industrial Applications and Technological Evolution

4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors

SiC crucibles are essential in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against long term exposure to thaw silicon at ~ 1420 ° C.

Their thermal stability ensures uniform crystallization and reduces dislocation density, straight influencing photovoltaic efficiency.

In foundries, SiC crucibles are used for melting non-ferrous metals such as aluminum and brass, using longer life span and lowered dross formation contrasted to clay-graphite alternatives.

They are additionally utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic substances.

4.2 Future Patterns and Advanced Material Integration

Emerging applications consist of making use of SiC crucibles in next-generation nuclear materials screening and molten salt reactors, where their resistance to radiation and molten fluorides is being examined.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O SIX) are being put on SiC surface areas to further enhance chemical inertness and stop silicon diffusion in ultra-high-purity procedures.

Additive manufacturing of SiC elements making use of binder jetting or stereolithography is under advancement, encouraging complex geometries and quick prototyping for specialized crucible styles.

As demand grows for energy-efficient, sturdy, and contamination-free high-temperature processing, silicon carbide crucibles will certainly stay a keystone innovation in advanced materials making.

To conclude, silicon carbide crucibles stand for a vital allowing part in high-temperature commercial and clinical procedures.

Their exceptional mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of selection for applications where performance and reliability are vital.
