1. Material Basics and Crystal Chemistry

1.1 Make-up and Polymorphic Framework

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable solidity, thermal conductivity, and chemical inertness.

It exists in over 250 polytypes– crystal structures differing in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technologically relevant.

The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) result in a high melting point (~ 2700 ° C), low thermal growth (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.

Unlike oxide ceramics such as alumina, SiC does not have an indigenous lustrous stage, contributing to its security in oxidizing and corrosive atmospheres up to 1600 ° C.

Its large bandgap (2.3– 3.3 eV, depending upon polytype) additionally enhances it with semiconductor buildings, allowing dual use in architectural and electronic applications.

1.2 Sintering Obstacles and Densification Approaches

Pure SiC is very challenging to densify because of its covalent bonding and reduced self-diffusion coefficients, requiring the use of sintering aids or sophisticated processing methods.

Reaction-bonded SiC (RB-SiC) is produced by infiltrating porous carbon preforms with molten silicon, developing SiC sitting; this technique yields near-net-shape components with recurring silicon (5– 20%).

Solid-state sintered SiC (SSiC) uses boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert environment, achieving > 99% theoretical thickness and superior mechanical buildings.

Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al ₂ O FOUR– Y ₂ O FIVE, developing a short-term fluid that enhances diffusion yet might lower high-temperature stamina due to grain-boundary stages.

Hot pushing and spark plasma sintering (SPS) supply quick, pressure-assisted densification with fine microstructures, suitable for high-performance components needing marginal grain development.

2. Mechanical and Thermal Performance Characteristics

2.1 Toughness, Hardness, and Put On Resistance

Silicon carbide porcelains exhibit Vickers solidity values of 25– 30 Grade point average, 2nd only to diamond and cubic boron nitride amongst engineering products.

Their flexural toughness usually ranges from 300 to 600 MPa, with crack strength (K_IC) of 3– 5 MPa · m 1ST/ ²– modest for ceramics yet boosted via microstructural design such as whisker or fiber support.

The mix of high hardness and elastic modulus (~ 410 GPa) makes SiC exceptionally immune to abrasive and abrasive wear, outmatching tungsten carbide and hardened steel in slurry and particle-laden atmospheres.

( Silicon Carbide Ceramics)

In industrial applications such as pump seals, nozzles, and grinding media, SiC parts show life span a number of times much longer than standard options.

Its low thickness (~ 3.1 g/cm ³) further contributes to use resistance by reducing inertial pressures in high-speed rotating parts.

2.2 Thermal Conductivity and Stability

Among SiC’s most distinct functions is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline kinds, and as much as 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals other than copper and light weight aluminum.

This property allows effective warm dissipation in high-power electronic substratums, brake discs, and heat exchanger components.

Combined with low thermal growth, SiC exhibits outstanding thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high values suggest strength to rapid temperature level adjustments.

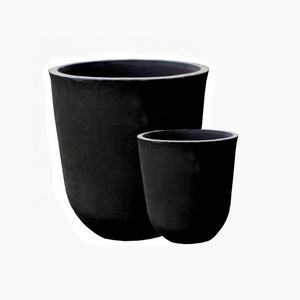

For instance, SiC crucibles can be heated from space temperature to 1400 ° C in mins without cracking, a feat unattainable for alumina or zirconia in comparable problems.

In addition, SiC keeps strength as much as 1400 ° C in inert atmospheres, making it optimal for furnace fixtures, kiln furnishings, and aerospace parts exposed to severe thermal cycles.

3. Chemical Inertness and Deterioration Resistance

3.1 Actions in Oxidizing and Decreasing Atmospheres

At temperatures listed below 800 ° C, SiC is very stable in both oxidizing and minimizing atmospheres.

Over 800 ° C in air, a protective silica (SiO ₂) layer kinds on the surface area using oxidation (SiC + 3/2 O ₂ → SiO TWO + CO), which passivates the material and slows more degradation.

Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, causing increased economic downturn– an important consideration in wind turbine and burning applications.

In minimizing ambiences or inert gases, SiC continues to be stable approximately its decomposition temperature level (~ 2700 ° C), without any stage modifications or toughness loss.

This stability makes it ideal for liquified steel handling, such as light weight aluminum or zinc crucibles, where it withstands wetting and chemical attack far much better than graphite or oxides.

3.2 Resistance to Acids, Alkalis, and Molten Salts

Silicon carbide is essentially inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid combinations (e.g., HF– HNO FIVE).

It reveals superb resistance to alkalis as much as 800 ° C, though extended direct exposure to thaw NaOH or KOH can cause surface area etching through formation of soluble silicates.

In liquified salt environments– such as those in focused solar power (CSP) or nuclear reactors– SiC demonstrates exceptional corrosion resistance contrasted to nickel-based superalloys.

This chemical effectiveness underpins its usage in chemical procedure tools, consisting of valves, linings, and warmth exchanger tubes handling aggressive media like chlorine, sulfuric acid, or seawater.

4. Industrial Applications and Arising Frontiers

4.1 Established Utilizes in Energy, Defense, and Production

Silicon carbide ceramics are indispensable to numerous high-value industrial systems.

In the power field, they serve as wear-resistant linings in coal gasifiers, elements in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature solid oxide fuel cells (SOFCs).

Protection applications consist of ballistic armor plates, where SiC’s high hardness-to-density ratio offers superior defense versus high-velocity projectiles contrasted to alumina or boron carbide at reduced price.

In manufacturing, SiC is used for precision bearings, semiconductor wafer handling components, and abrasive blasting nozzles as a result of its dimensional security and pureness.

Its usage in electrical vehicle (EV) inverters as a semiconductor substratum is quickly growing, driven by efficiency gains from wide-bandgap electronics.

4.2 Next-Generation Advancements and Sustainability

Recurring research concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile habits, improved durability, and kept toughness above 1200 ° C– excellent for jet engines and hypersonic vehicle leading edges.

Additive manufacturing of SiC by means of binder jetting or stereolithography is advancing, making it possible for complex geometries previously unattainable with conventional creating techniques.

From a sustainability point of view, SiC’s durability lowers replacement frequency and lifecycle exhausts in industrial systems.

Recycling of SiC scrap from wafer slicing or grinding is being created through thermal and chemical recovery processes to recover high-purity SiC powder.

As markets press toward higher efficiency, electrification, and extreme-environment procedure, silicon carbide-based porcelains will certainly stay at the center of sophisticated materials engineering, bridging the gap between structural resilience and functional adaptability.
