Introduction to Aluminum Nitride Ceramics

Aluminum nitride (AlN) is a high-performance ceramic product that has actually obtained extensive acknowledgment for its exceptional thermal conductivity, electric insulation, and mechanical stability at raised temperature levels. With a hexagonal wurtzite crystal structure, AlN displays an unique mix of residential or commercial properties that make it one of the most excellent substratum product for applications in electronics, optoelectronics, power components, and high-temperature environments. Its capability to effectively dissipate warmth while keeping exceptional dielectric stamina positions AlN as a premium choice to typical ceramic substrates such as alumina and beryllium oxide. This write-up explores the basic attributes of aluminum nitride porcelains, looks into construction strategies, and highlights its vital roles throughout advanced technical domain names.

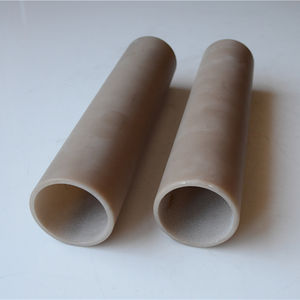

(Aluminum Nitride Ceramics)

Crystal Structure and Essential Quality

The efficiency of light weight aluminum nitride as a substratum product is greatly dictated by its crystalline structure and innate physical buildings. AlN adopts a wurtzite-type lattice composed of rotating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– usually surpassing 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This value dramatically surpasses those of other commonly utilized ceramic materials, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).

Along with its thermal performance, AlN possesses a large bandgap of about 6.2 eV, leading to superb electrical insulation buildings also at high temperatures. It additionally demonstrates reduced thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor device product packaging. In addition, AlN exhibits high chemical inertness and resistance to thaw metals, improving its suitability for harsh environments. These combined qualities develop AlN as a prominent prospect for high-power digital substrates and thermally took care of systems.

Construction and Sintering Technologies

Producing top notch aluminum nitride ceramics needs specific powder synthesis and sintering strategies to accomplish dense microstructures with minimal impurities. As a result of its covalent bonding nature, AlN does not easily compress through standard pressureless sintering. As a result, sintering aids such as yttrium oxide (Y TWO O TWO), calcium oxide (CaO), or uncommon planet aspects are normally added to promote liquid-phase sintering and enhance grain limit diffusion.

The manufacture procedure normally starts with the carbothermal reduction of light weight aluminum oxide in a nitrogen environment to manufacture AlN powders. These powders are after that crushed, shaped using methods like tape casting or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pressing or spark plasma sintering (SPS) can further enhance thickness and thermal conductivity by reducing porosity and advertising grain placement. Advanced additive production techniques are also being explored to produce complex-shaped AlN components with tailored thermal management capacities.

Application in Digital Packaging and Power Modules

One of the most noticeable uses of aluminum nitride porcelains is in electronic product packaging, specifically for high-power gadgets such as shielded entrance bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities increase in modern-day electronics, effective heat dissipation becomes essential to guarantee dependability and durability. AlN substratums supply an optimum remedy by integrating high thermal conductivity with exceptional electric isolation, avoiding short circuits and thermal runaway conditions.

Additionally, AlN-based direct adhered copper (DBC) and energetic metal brazed (AMB) substratums are increasingly used in power component designs for electrical vehicles, renewable resource inverters, and industrial motor drives. Contrasted to conventional alumina or silicon nitride substratums, AlN offers much faster warmth transfer and better compatibility with silicon chip coefficients of thermal development, consequently minimizing mechanical tension and enhancing general system performance. Ongoing research study intends to boost the bonding toughness and metallization techniques on AlN surface areas to further expand its application range.

Use in Optoelectronic and High-Temperature Devices

Beyond digital product packaging, aluminum nitride porcelains play a vital duty in optoelectronic and high-temperature applications because of their openness to ultraviolet (UV) radiation and thermal security. AlN is commonly used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications calling for sterilization, sensing, and optical interaction. Its vast bandgap and low absorption coefficient in the UV variety make it a suitable prospect for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.

Additionally, AlN’s capacity to operate reliably at temperatures going beyond 1000 ° C makes it ideal for usage in sensors, thermoelectric generators, and elements subjected to extreme thermal loads. In aerospace and defense sectors, AlN-based sensor bundles are employed in jet engine monitoring systems and high-temperature control systems where traditional products would certainly stop working. Continual advancements in thin-film deposition and epitaxial growth techniques are broadening the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.

( Aluminum Nitride Ceramics)

Environmental Stability and Long-Term Integrity

A vital consideration for any substrate material is its lasting integrity under functional stresses. Aluminum nitride shows superior ecological stability contrasted to lots of other porcelains. It is highly resistant to corrosion from acids, alkalis, and molten steels, making certain toughness in aggressive chemical atmospheres. Nevertheless, AlN is susceptible to hydrolysis when subjected to dampness at elevated temperatures, which can weaken its surface and minimize thermal efficiency.

To mitigate this issue, protective coverings such as silicon nitride (Si three N ₄), aluminum oxide, or polymer-based encapsulation layers are often applied to boost wetness resistance. Furthermore, cautious securing and packaging methods are applied during device setting up to preserve the honesty of AlN substratums throughout their service life. As environmental laws come to be a lot more rigid, the safe nature of AlN also positions it as a recommended alternative to beryllium oxide, which positions health and wellness threats during handling and disposal.

Verdict

Light weight aluminum nitride ceramics represent a class of advanced materials distinctively matched to resolve the expanding demands for efficient thermal monitoring and electrical insulation in high-performance electronic and optoelectronic systems. Their outstanding thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them the most suitable substrate material for a wide range of applications– from automobile power modules to deep UV LEDs and high-temperature sensing units. As manufacture innovations remain to progress and cost-efficient production methods mature, the fostering of AlN substrates is expected to increase dramatically, driving development in next-generation electronic and photonic tools.
