1. Material Principles and Structural Features of Alumina Ceramics

1.1 Crystallographic and Compositional Basis of α-Alumina

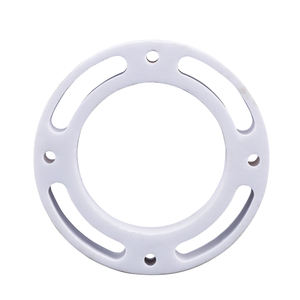

(Alumina Ceramic Substrates)

Alumina ceramic substratums, mainly made up of light weight aluminum oxide (Al two O THREE), work as the foundation of modern-day digital product packaging because of their extraordinary equilibrium of electric insulation, thermal security, mechanical stamina, and manufacturability.

One of the most thermodynamically secure stage of alumina at high temperatures is diamond, or α-Al ₂ O ₃, which crystallizes in a hexagonal close-packed oxygen latticework with aluminum ions inhabiting two-thirds of the octahedral interstitial sites.

This thick atomic setup imparts high solidity (Mohs 9), exceptional wear resistance, and strong chemical inertness, making α-alumina suitable for harsh operating environments.

Industrial substratums normally have 90– 99.8% Al Two O SIX, with small enhancements of silica (SiO TWO), magnesia (MgO), or uncommon earth oxides utilized as sintering aids to advertise densification and control grain development during high-temperature processing.

Higher purity grades (e.g., 99.5% and over) exhibit remarkable electric resistivity and thermal conductivity, while lower purity versions (90– 96%) offer affordable services for much less demanding applications.

1.2 Microstructure and Flaw Engineering for Electronic Dependability

The performance of alumina substrates in electronic systems is seriously based on microstructural uniformity and issue reduction.

A penalty, equiaxed grain structure– normally varying from 1 to 10 micrometers– makes sure mechanical honesty and decreases the probability of crack breeding under thermal or mechanical tension.

Porosity, particularly interconnected or surface-connected pores, have to be lessened as it deteriorates both mechanical stamina and dielectric efficiency.

Advanced processing methods such as tape casting, isostatic pressing, and controlled sintering in air or regulated ambiences make it possible for the production of substratums with near-theoretical thickness (> 99.5%) and surface roughness listed below 0.5 µm, vital for thin-film metallization and wire bonding.

Furthermore, impurity partition at grain limits can cause leakage currents or electrochemical migration under bias, requiring strict control over resources pureness and sintering conditions to make certain long-term integrity in moist or high-voltage settings.

2. Production Processes and Substratum Manufacture Technologies

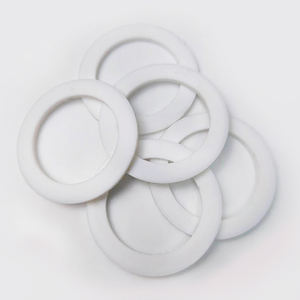

( Alumina Ceramic Substrates)

2.1 Tape Casting and Eco-friendly Body Handling

The manufacturing of alumina ceramic substrates starts with the preparation of a very distributed slurry including submicron Al ₂ O three powder, natural binders, plasticizers, dispersants, and solvents.

This slurry is refined via tape casting– a continuous method where the suspension is spread over a moving provider movie utilizing a precision medical professional blade to achieve consistent thickness, typically between 0.1 mm and 1.0 mm.

After solvent dissipation, the resulting “environment-friendly tape” is adaptable and can be punched, drilled, or laser-cut to develop by means of openings for upright affiliations.

Numerous layers may be laminated to create multilayer substratums for complicated circuit integration, although most of commercial applications make use of single-layer configurations because of cost and thermal expansion considerations.

The eco-friendly tapes are then very carefully debound to eliminate organic ingredients with regulated thermal decomposition before last sintering.

2.2 Sintering and Metallization for Circuit Combination

Sintering is carried out in air at temperature levels in between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to accomplish full densification.

The linear contraction throughout sintering– normally 15– 20%– must be exactly predicted and made up for in the design of green tapes to ensure dimensional precision of the last substrate.

Adhering to sintering, metallization is related to develop conductive traces, pads, and vias.

Two main approaches dominate: thick-film printing and thin-film deposition.

In thick-film technology, pastes consisting of metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a lowering environment to develop robust, high-adhesion conductors.

For high-density or high-frequency applications, thin-film processes such as sputtering or dissipation are made use of to down payment attachment layers (e.g., titanium or chromium) complied with by copper or gold, enabling sub-micron patterning by means of photolithography.

Vias are full of conductive pastes and terminated to develop electrical interconnections between layers in multilayer designs.

3. Functional Qualities and Efficiency Metrics in Electronic Solution

3.1 Thermal and Electric Habits Under Functional Stress

Alumina substratums are treasured for their beneficial combination of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O TWO), which allows effective heat dissipation from power tools, and high volume resistivity (> 10 ¹⁴ Ω · centimeters), guaranteeing minimal leak current.

Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is steady over a vast temperature and frequency variety, making them ideal for high-frequency circuits as much as a number of gigahertz, although lower-κ products like light weight aluminum nitride are chosen for mm-wave applications.

The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is sensibly well-matched to that of silicon (~ 3 ppm/K) and certain packaging alloys, lowering thermo-mechanical anxiety throughout device operation and thermal biking.

However, the CTE inequality with silicon remains a problem in flip-chip and direct die-attach setups, commonly needing certified interposers or underfill materials to minimize tiredness failing.

3.2 Mechanical Effectiveness and Environmental Longevity

Mechanically, alumina substratums exhibit high flexural toughness (300– 400 MPa) and excellent dimensional stability under tons, enabling their use in ruggedized electronic devices for aerospace, auto, and industrial control systems.

They are immune to vibration, shock, and creep at raised temperatures, keeping architectural honesty up to 1500 ° C in inert environments.

In humid atmospheres, high-purity alumina reveals minimal wetness absorption and superb resistance to ion movement, making sure long-lasting integrity in outdoor and high-humidity applications.

Surface area firmness likewise shields versus mechanical damages during handling and setting up, although care should be taken to prevent side chipping due to integral brittleness.

4. Industrial Applications and Technological Influence Throughout Sectors

4.1 Power Electronic Devices, RF Modules, and Automotive Systems

Alumina ceramic substratums are ubiquitous in power digital modules, including insulated gateway bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electrical isolation while promoting warmth transfer to heat sinks.

In superhigh frequency (RF) and microwave circuits, they act as carrier systems for crossbreed incorporated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks because of their stable dielectric residential properties and reduced loss tangent.

In the automotive industry, alumina substratums are made use of in engine control units (ECUs), sensing unit packages, and electric automobile (EV) power converters, where they withstand high temperatures, thermal cycling, and exposure to harsh fluids.

Their integrity under extreme conditions makes them important for safety-critical systems such as anti-lock stopping (ABDOMINAL) and advanced vehicle driver help systems (ADAS).

4.2 Medical Gadgets, Aerospace, and Arising Micro-Electro-Mechanical Equipments

Beyond customer and commercial electronic devices, alumina substratums are utilized in implantable clinical gadgets such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are critical.

In aerospace and protection, they are made use of in avionics, radar systems, and satellite interaction modules as a result of their radiation resistance and security in vacuum cleaner settings.

Additionally, alumina is significantly made use of as an architectural and protecting system in micro-electro-mechanical systems (MEMS), consisting of stress sensing units, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film handling are advantageous.

As electronic systems continue to demand higher power densities, miniaturization, and dependability under severe problems, alumina ceramic substratums continue to be a cornerstone product, bridging the void between performance, price, and manufacturability in innovative electronic packaging.
