1. Intro to Oil Immersed Transformers
In the detailed web of our contemporary electrical grid, transformers play an indispensable duty, silently tipping voltage backwards and forwards to make sure power can be transferred successfully over long distances and dispersed securely to our homes and sectors. Among the numerous kinds readily available, the oil submersed transformer stands as a testimony to proven reliability and toughness. For decades, these workhorses have actually created the foundation of power systems worldwide.
An oil immersed transformer is a kind of electric transformer that utilizes a specific shielding oil as both a coolant and a protecting tool. This design is predominantly utilized for tool to high-power applications, making it a cornerstone of electrical infrastructure. This overview digs deep into the world of oil submersed power transformers and oil submersed distribution transformers, discovering their innovation, applications, and their progressing function in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed storage tank loaded with insulating oil. The primary function of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, successfully insulating the high-voltage windings from the transformer’s core and grounded container. This stops short circuits and electric breakdowns.
2. Air conditioning: As the transformer runs, the windings generate significant warmth because of I ² R losses. The distributing oil absorbs this warm, convects it to the transformer’s container walls, and dissipates it into the surrounding air. Larger units usually feature radiators or fins to increase the surface area for extra effective cooling.
This dual-purpose use of oil makes the oil submersed transformer exceptionally efficient and robust, with the ability of handling high loads and enduring transient overloads much better than many dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these devices are oil submersed transformers, they offer unique features within the power system network. Comprehending the difference is important.
An oil submersed power transformer is a heavyweight, commonly utilized in transmission networks at generating stations and significant substations. Their primary role is to “step-up” the voltage created at the power plant to extremely high levels (e.g., 138 kV, 230 kV, 500 kV and above) for reliable long-distance transmission, and to “step-down” the voltage at getting substations for additional distribution. They are characterized by their extremely high power ratings (typically going beyond 100 MVA), complicated construction, and on-load faucet changers for voltage law.
An oil engaged distribution transformer, on the other hand, executes the final step in the power distribution chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the reduced voltages (e.g., 400/230 V) used by industrial and household customers. You generally locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (usually up to 2,500 kVA), and are developed for optimal efficiency at reduced, a lot more continuous loads.

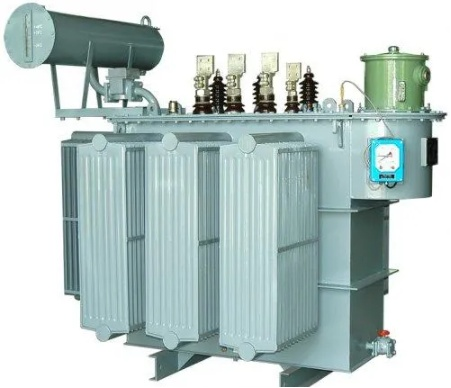

(Oil immersed power transformer)
2. Trick Advantages of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintentional. It uses a collection of engaging benefits that make it the favored selection for numerous demanding applications.
2.1 Superior Air Conditioning and Overload Capacity
The premium thermal ability of oil contrasted to air enables an oil immersed power transformer to manage and dissipate warm a lot more properly. This converts to a higher overload capability. Throughout periods of optimal electrical power demand, an oil immersed transformer can handle short-lived overloads without suffering damages, a critical feature for preserving grid stability. The oil’s flow makes sure also heat circulation, stopping localized hot spots that can deteriorate insulation over time.
2.2 Boosted Insulation and Long Service Life
The mix of high-grade mineral oil and diligently impregnated paper insulation develops a dielectric system of exceptional strength. This durable insulation system protects the transformer from voltage surges and transients, adding to a functional life-span that can include 30-40 years or even more with correct upkeep. The sealed tank additionally safeguards the inner parts from dampness, dirt, and various other climatic impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is frequently one of the most economical choice. The materials utilized– mineral oil, steel storage tank, and copper/aluminum windings– provide a beneficial balance of efficiency and cost. The high performance of these transformers, particularly at their rated lots, results in lower power losses over their life time, resulting in considerable cost savings for utility companies and huge commercial individuals.
3. Hot Topics and Future Trends
The world of oil immersed transformers is not static. It is constantly advancing to satisfy new challenges and integrate with modern innovations.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety and security issues are driving a significant shift far from traditional mineral oil. The market is rapidly adopting oil immersed transformers full of eco-friendly esters (synthetic or natural). These oils supply a greater fire point (making them K-class fire-resistant), are less harmful, and are readily naturally degradable, dramatically lowering the ecological influence in case of a leak. This trend is making oil immersed distribution transformers more secure for installation in metropolitan areas and environmentally sensitive places.
3.2 Combination with Smart Grids and IoT
The modern-day oil engaged power transformer is coming to be an intelligent node in the clever grid. Sensing units are being integrated to keep track of vital specifications in real-time, consisting of:
Dissolved Gas Analysis (DGA): Finding mistake gases created within the oil to anticipate incipient faults.
Temperature Level Tracking: Tracking top-oil and hotspot temperature levels.
Load and Power Quality Monitoring.
This data, transmitted through IoT (Web of Things) systems, enables anticipating maintenance, stops unplanned blackouts, and optimizes transformer application and lifespan.
3.3 Sustaining the Renewable Resource Transition
The global push for renewables is creating new need for oil submersed transformers. Large solar farms and wind power setups require robust oil immersed power transformers to tip up the created voltage to transmission levels. Moreover, the intermittent nature of renewables locations higher stress and anxiety on grid components, and the tested dependability and overload capability of oil submersed transformers make them ideal for this vital function.
4. Choice and Maintenance Ideal Practices
Picking the best transformer and keeping it appropriately is essential to a trustworthy power system.
4.1 How to Select the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil immersed distribution transformer depends on the application. Key factors to consider include:
1. Voltage Level and kVA Rating: Suit the transformer’s specs to your system’s demands.
2. Application: Transmission substation, plant, or commercial distribution.
3. Location: Indoor vs. outside, ecological conditions, and fire security policies (which may influence the selection of insulating oil).
4. Efficiency Specifications: Abide by regional effectiveness requirements like DOE (USA) or EU CoC (Europe).
5. Budget plan: Take into consideration both the preliminary funding cost and the complete cost of possession, consisting of losses.

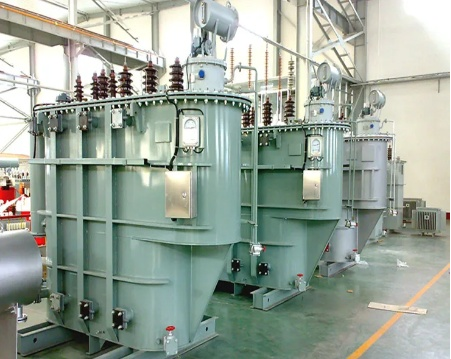

(Oil immersed distribution transformer)
4.2 Necessary Upkeep for Durability
Proactive upkeep is vital for any oil immersed transformer. An extensive program should consist of:
1. Regular Oil Sampling and Testing: Routine DGA and testing of dielectric stamina and dampness content are the most effective means to assess the wellness of the transformer.
2. Bushing and Insulation Inspection: Aesthetic look for fractures, contamination, or leakages.
3. Faucet Changer Upkeep: Routine inspection and maintenance of on-load or off-load faucet changers.
4. Maintain it Clean and Dry: Ensuring the storage tank outside, radiators, and breathers are clean and functional.
The oil submersed transformer, in its functions as both a high-capacity oil immersed power transformer and a common oil immersed distribution transformer, remains an irreplaceable element of our global power framework. Its tested layout, paired with continuous advancements in protecting fluids and electronic tracking, ensures it will certainly remain to be a trusted, reliable, and intelligent option for powering our globe for years to find. As we build the grids of the future, integrating more renewables and electronic intelligence, the robust and versatile oil immersed transformer will undoubtedly be at the heart of it.
