1. Essential Structure and Material Make-up

1.1 The Nanoscale Style of Aerogels

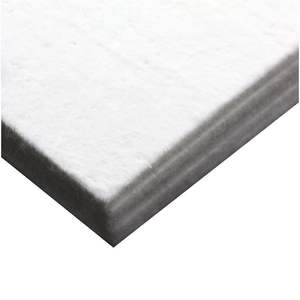

(Aerogel Blanket)

Aerogel blankets are innovative thermal insulation products built on a special nanostructured structure, where a strong silica or polymer network spans an ultra-high porosity volume– generally going beyond 90% air.

This framework originates from the sol-gel procedure, in which a liquid forerunner (commonly tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to develop a damp gel, adhered to by supercritical or ambient stress drying to remove the fluid without breaking down the fragile porous network.

The resulting aerogel contains interconnected nanoparticles (3– 5 nm in diameter) creating pores on the range of 10– 50 nm, small sufficient to reduce air particle activity and thus reduce conductive and convective warm transfer.

This phenomenon, called Knudsen diffusion, drastically decreases the effective thermal conductivity of the product, typically to worths between 0.012 and 0.018 W/(m · K) at room temperature level– among the lowest of any kind of strong insulator.

In spite of their low density (as low as 0.003 g/cm SIX), pure aerogels are naturally brittle, requiring support for practical use in versatile covering kind.

1.2 Reinforcement and Composite Design

To conquer delicacy, aerogel powders or monoliths are mechanically integrated into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that preserves remarkable insulation while acquiring mechanical toughness.

The reinforcing matrix gives tensile toughness, versatility, and handling sturdiness, making it possible for the product to be cut, bent, and installed in complicated geometries without significant performance loss.

Fiber content normally varies from 5% to 20% by weight, thoroughly stabilized to reduce thermal linking– where fibers perform warmth throughout the covering– while guaranteeing architectural honesty.

Some progressed styles integrate hydrophobic surface area treatments (e.g., trimethylsilyl teams) to avoid wetness absorption, which can degrade insulation efficiency and promote microbial development.

These adjustments permit aerogel blankets to keep steady thermal residential or commercial properties even in humid settings, expanding their applicability past regulated research laboratory conditions.

2. Manufacturing Processes and Scalability

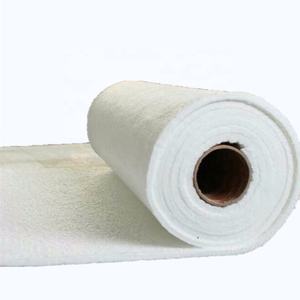

( Aerogel Blanket)

2.1 From Sol-Gel to Roll-to-Roll Production

The production of aerogel blankets starts with the formation of a wet gel within a coarse mat, either by fertilizing the substrate with a fluid forerunner or by co-forming the gel and fiber network at the same time.

After gelation, the solvent need to be eliminated under conditions that avoid capillary stress from collapsing the nanopores; traditionally, this called for supercritical carbon monoxide two drying, an expensive and energy-intensive procedure.

Current developments have actually allowed ambient stress drying via surface alteration and solvent exchange, significantly reducing manufacturing prices and allowing constant roll-to-roll production.

In this scalable process, long rolls of fiber mat are continuously covered with precursor solution, gelled, dried, and surface-treated, enabling high-volume outcome ideal for industrial applications.

This change has actually been pivotal in transitioning aerogel coverings from particular niche lab products to readily viable products used in building and construction, energy, and transport sectors.

2.2 Quality Control and Performance Uniformity

Making certain uniform pore structure, constant thickness, and trusted thermal performance across large manufacturing batches is important for real-world implementation.

Suppliers use rigorous quality control steps, including laser scanning for density variation, infrared thermography for thermal mapping, and gravimetric analysis for dampness resistance.

Batch-to-batch reproducibility is important, especially in aerospace and oil & gas markets, where failing because of insulation malfunction can have extreme repercussions.

Furthermore, standardized testing according to ASTM C177 (warmth flow meter) or ISO 9288 ensures exact reporting of thermal conductivity and allows reasonable comparison with standard insulators like mineral wool or foam.

3. Thermal and Multifunctional Feature

3.1 Superior Insulation Across Temperature Ranges

Aerogel blankets display exceptional thermal efficiency not only at ambient temperature levels however also throughout severe ranges– from cryogenic problems below -100 ° C to heats going beyond 600 ° C, relying on the base product and fiber type.

At cryogenic temperatures, traditional foams might split or shed effectiveness, whereas aerogel coverings stay versatile and preserve low thermal conductivity, making them perfect for LNG pipelines and tank.

In high-temperature applications, such as industrial furnaces or exhaust systems, they give effective insulation with decreased thickness compared to bulkier choices, conserving room and weight.

Their reduced emissivity and capacity to show radiant heat better boost efficiency in radiant barrier setups.

This large functional envelope makes aerogel coverings distinctly functional amongst thermal monitoring remedies.

3.2 Acoustic and Fire-Resistant Attributes

Beyond thermal insulation, aerogel blankets demonstrate significant sound-dampening properties as a result of their open, tortuous pore structure that dissipates acoustic energy through thick losses.

They are significantly used in automobile and aerospace cabins to decrease environmental pollution without including considerable mass.

Moreover, most silica-based aerogel coverings are non-combustible, attaining Course A fire ratings, and do not release poisonous fumes when subjected to fire– critical for building security and public infrastructure.

Their smoke thickness is exceptionally low, enhancing presence during emergency discharges.

4. Applications in Industry and Arising Technologies

4.1 Power Effectiveness in Building and Industrial Systems

Aerogel coverings are changing energy efficiency in style and commercial design by enabling thinner, higher-performance insulation layers.

In structures, they are made use of in retrofitting historic structures where wall surface thickness can not be enhanced, or in high-performance façades and home windows to reduce thermal bridging.

In oil and gas, they protect pipelines bring warm fluids or cryogenic LNG, decreasing energy loss and protecting against condensation or ice formation.

Their lightweight nature likewise lowers architectural lots, especially valuable in overseas platforms and mobile units.

4.2 Aerospace, Automotive, and Customer Applications

In aerospace, aerogel blankets shield spacecraft from severe temperature level variations during re-entry and shield sensitive tools from thermal cycling in space.

NASA has actually utilized them in Mars vagabonds and astronaut fits for easy thermal guideline.

Automotive makers incorporate aerogel insulation into electrical car battery packs to prevent thermal runaway and enhance security and efficiency.

Consumer products, including exterior clothing, shoes, and camping equipment, now include aerogel linings for premium heat without bulk.

As manufacturing costs decline and sustainability enhances, aerogel coverings are positioned to come to be mainstream options in worldwide initiatives to decrease energy usage and carbon exhausts.

Finally, aerogel coverings stand for a convergence of nanotechnology and sensible design, supplying unrivaled thermal efficiency in a versatile, resilient layout.

Their ability to conserve power, space, and weight while keeping safety and environmental compatibility settings them as key enablers of lasting modern technology throughout varied industries.
