Every part in a train system must work well. This maintains the system risk-free and reliable. Railway casting components are extremely crucial. They provide support, attach things, and conduct signals. Their top quality affects just how steady the railway network is. When you acquire these parts for South Africa, South America, or Russia, you have to locate great producers. To be successful, you require to understand the local technical guidelines. Below are 5 vital quality standards you should constantly comply with.

1. Material Structure & Mechanical Characteristics: The Structure of Top quality

The efficiency of cast iron depends on its specific chemical structure and spreading process, and must satisfy the worldwide or regional criteria of the target market. A reliable train spreading components maker will certainly offer full product traceability.

1.1 Make-up Requirements: Must abide by standards such as International Standards (ISO), European Criteria (EN), Russian GOST requirements, or those commonly utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The content of unsafe components like phosphorus and sulfur have to be strictly regulated.

1.2 Mechanical Properties: Concentrate on tensile strength, return stamina, hardness, and prolongation. For pliable iron, describe requirements such as ISO 1083, EN 1563, or GOST 28394. Purchase needs to need vendors to offer product certificates and mechanical test records that comply with the target audience’s demands.

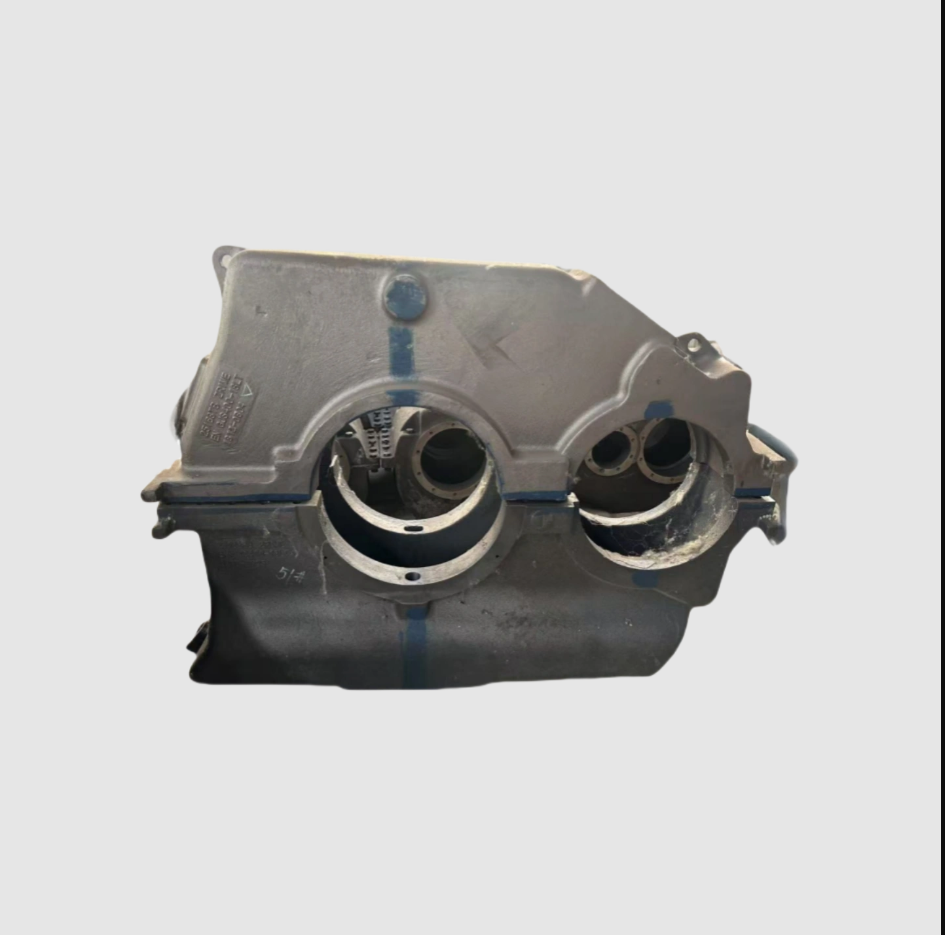

(Railway Cast Iron Gearbox)

2. Dimensional Accuracy & Tolerance Control: Making Certain a “Perfect Fit”

Train tasks worldwide have rigorous needs for dimensional interchangeability; any kind of deviation can affect system integration. Accuracy is a mark of premium train casting makers.

2.1 Vital Dimensions: All interface dimensions and mounting hole positions for all train casting elements have to be 100% checked.

2.2 Resistance Requirements: Should stick to globally identified standards like ISO 2768, or certain resistance requirements explicitly set with the client. For the Russian and CIS markets, special focus must be paid to adhering to pertinent resistance specs in GOST 30893.

3. Limitations on Casting Issues: Getting Rid Of Inner Hidden Dangers

The approval criteria for casting issues have to be clearly specified in contracts and based upon internationally or regionally acknowledged specs. Leading train casting parts supplier operations utilize strenuous non-destructive screening.

3.1 Surface area Flaws: Requirements like ISO 8062 can be referenced for assessing casting surface top quality. Fractures, cool shuts, and various other defects influencing serviceability are not allowed.

3.2 Interior Issues: For crucial load-bearing train spreading parts, non-destructive screening (e.g., ultrasonic, radiographic) must be done according to requirements like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance degrees for problems.

4. Metallographic Structure & Internal Quality

The microscopic framework of the product is the essential basis for judging whether its inner high quality meets the standard. This is a crucial check for any kind of expert train casting components manufacturer.

4.1 Ductile Iron: The evaluation of nodularization price need to follow criteria such as ISO 945-1 or GOST 3443 to guarantee its mechanical homes fulfill the demands for use under intricate working problems.

4.2 Graphite Morphology & Matrix Structure: The metallographic assessment report is an important paper for confirming the security of the production process and have to comply with the relevant worldwide or regional criteria.

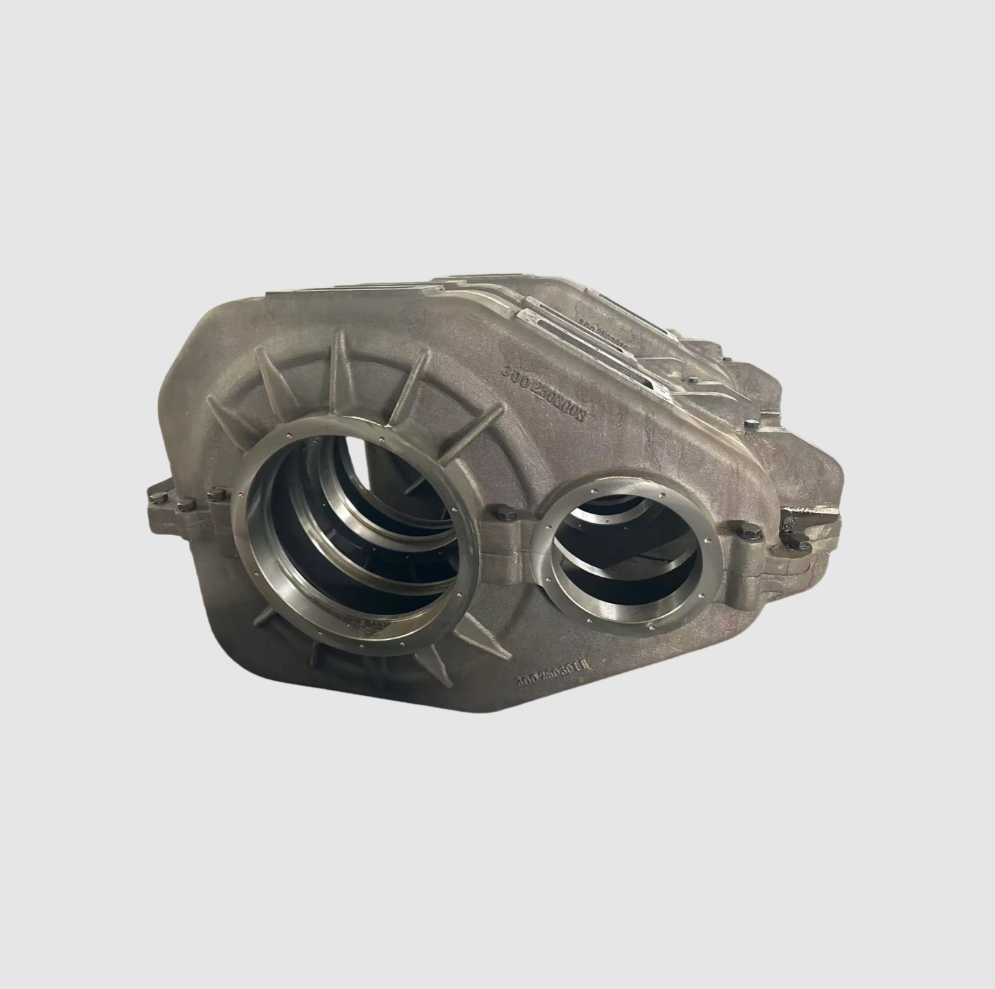

(Railway Cast Iron Gearbox)

5. Anti-Corrosion Treatment & Surface Area High Quality: Withstanding Harsh Environments

Provided South Africa’s seaside high salinity, South America’s tropical rainforest moisture, and Russia’s extreme cool and de-icing salts, anti-corrosion therapy for train casting elements is essential.

5.1 Therapy Procedures: Define the kind of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy layer, etc, and specify vital indications like covering thickness, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).

5.2 Regional Requirements: Need to take note of specific requirements of the target audience, such as Russia’s GOST 9.307 anti-corrosion system certification, or South Africa’s SANS (South African National Criterion) criteria. A global railway spreading suppliers will certainly recognize with these diverse requirements.

Luoyang Fonyo Heavy Industries Co., Ltd. is a leading maker of hefty industrial spreadings and elements, focusing on supplying premium steel spreadings, consisting of carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With a detailed service design incorporating design, casting, machining, and service, Fonyo makes certain that each item meets strenuous top quality and efficiency criteria to satisfy the demanding requirements of different hefty industries.

If you are looking for a trusted supplier of railroad sleeper, Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
