1. Crystallography and Polymorphism of Titanium Dioxide
1.1 Anatase, Rutile, and Brookite: Structural and Electronic Differences

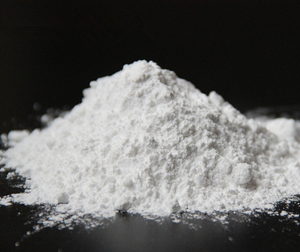

( Titanium Dioxide)
Titanium dioxide (TiO â‚‚) is a naturally taking place metal oxide that exists in three main crystalline forms: rutile, anatase, and brookite, each displaying distinct atomic plans and electronic homes despite sharing the same chemical formula.
Rutile, the most thermodynamically steady phase, includes a tetragonal crystal framework where titanium atoms are octahedrally collaborated by oxygen atoms in a dense, direct chain setup along the c-axis, resulting in high refractive index and outstanding chemical security.
Anatase, likewise tetragonal however with a more open structure, has corner- and edge-sharing TiO ₆ octahedra, causing a greater surface area energy and better photocatalytic activity as a result of improved fee provider flexibility and decreased electron-hole recombination rates.
Brookite, the least common and most challenging to manufacture stage, embraces an orthorhombic framework with complicated octahedral tilting, and while less examined, it shows intermediate buildings in between anatase and rutile with emerging passion in crossbreed systems.
The bandgap powers of these stages vary somewhat: rutile has a bandgap of roughly 3.0 eV, anatase around 3.2 eV, and brookite regarding 3.3 eV, affecting their light absorption qualities and viability for particular photochemical applications.
Phase security is temperature-dependent; anatase typically changes irreversibly to rutile above 600– 800 ° C, a transition that should be regulated in high-temperature handling to protect wanted practical residential or commercial properties.
1.2 Issue Chemistry and Doping Approaches
The practical convenience of TiO â‚‚ arises not just from its innate crystallography but also from its capability to accommodate factor flaws and dopants that modify its digital framework.
Oxygen openings and titanium interstitials act as n-type contributors, raising electric conductivity and producing mid-gap states that can influence optical absorption and catalytic activity.
Regulated doping with metal cations (e.g., Fe FIVE âº, Cr Four âº, V FOUR âº) or non-metal anions (e.g., N, S, C) narrows the bandgap by introducing impurity levels, allowing visible-light activation– an essential development for solar-driven applications.
As an example, nitrogen doping replaces lattice oxygen websites, producing localized states over the valence band that permit excitation by photons with wavelengths approximately 550 nm, substantially increasing the usable part of the solar spectrum.
These alterations are vital for overcoming TiO â‚‚’s key constraint: its broad bandgap limits photoactivity to the ultraviolet region, which constitutes only around 4– 5% of case sunshine.
( Titanium Dioxide)
2. Synthesis Techniques and Morphological Control
2.1 Traditional and Advanced Manufacture Techniques
Titanium dioxide can be manufactured with a selection of methods, each using various levels of control over stage purity, bit size, and morphology.
The sulfate and chloride (chlorination) procedures are massive industrial routes used mainly for pigment production, involving the digestion of ilmenite or titanium slag adhered to by hydrolysis or oxidation to produce fine TiO two powders.
For useful applications, wet-chemical approaches such as sol-gel handling, hydrothermal synthesis, and solvothermal paths are liked as a result of their capacity to create nanostructured materials with high area and tunable crystallinity.
Sol-gel synthesis, beginning with titanium alkoxides like titanium isopropoxide, permits precise stoichiometric control and the development of slim films, pillars, or nanoparticles with hydrolysis and polycondensation responses.
Hydrothermal techniques allow the development of distinct nanostructures– such as nanotubes, nanorods, and ordered microspheres– by regulating temperature, pressure, and pH in aqueous atmospheres, typically using mineralizers like NaOH to promote anisotropic growth.
2.2 Nanostructuring and Heterojunction Engineering
The performance of TiO two in photocatalysis and power conversion is extremely based on morphology.
One-dimensional nanostructures, such as nanotubes created by anodization of titanium metal, give straight electron transportation paths and big surface-to-volume ratios, boosting fee separation performance.
Two-dimensional nanosheets, especially those exposing high-energy elements in anatase, display exceptional sensitivity as a result of a greater density of undercoordinated titanium atoms that act as energetic websites for redox responses.
To further enhance efficiency, TiO two is frequently integrated right into heterojunction systems with various other semiconductors (e.g., g-C three N â‚„, CdS, WO THREE) or conductive assistances like graphene and carbon nanotubes.
These compounds promote spatial splitting up of photogenerated electrons and openings, minimize recombination losses, and expand light absorption into the noticeable array through sensitization or band positioning results.
3. Practical Features and Surface Area Sensitivity
3.1 Photocatalytic Devices and Environmental Applications
One of the most celebrated building of TiO â‚‚ is its photocatalytic activity under UV irradiation, which allows the destruction of organic contaminants, bacterial inactivation, and air and water filtration.
Upon photon absorption, electrons are excited from the valence band to the conduction band, leaving behind openings that are powerful oxidizing representatives.
These fee carriers respond with surface-adsorbed water and oxygen to produce responsive oxygen types (ROS) such as hydroxyl radicals (- OH), superoxide anions (- O â‚‚ â»), and hydrogen peroxide (H â‚‚ O â‚‚), which non-selectively oxidize organic pollutants right into CO TWO, H TWO O, and mineral acids.
This system is exploited in self-cleaning surface areas, where TiO â‚‚-covered glass or tiles break down organic dirt and biofilms under sunlight, and in wastewater treatment systems targeting dyes, pharmaceuticals, and endocrine disruptors.
Additionally, TiO â‚‚-based photocatalysts are being established for air purification, getting rid of unstable natural compounds (VOCs) and nitrogen oxides (NOâ‚“) from interior and urban environments.
3.2 Optical Spreading and Pigment Performance
Past its reactive buildings, TiO â‚‚ is one of the most widely made use of white pigment in the world because of its remarkable refractive index (~ 2.7 for rutile), which allows high opacity and brightness in paints, coverings, plastics, paper, and cosmetics.
The pigment features by spreading noticeable light efficiently; when bit dimension is maximized to approximately half the wavelength of light (~ 200– 300 nm), Mie spreading is made the most of, causing exceptional hiding power.
Surface treatments with silica, alumina, or organic finishings are applied to boost diffusion, decrease photocatalytic task (to prevent deterioration of the host matrix), and boost longevity in outdoor applications.
In sunscreens, nano-sized TiO two gives broad-spectrum UV protection by scattering and absorbing dangerous UVA and UVB radiation while staying clear in the noticeable range, offering a physical obstacle without the threats connected with some organic UV filters.
4. Emerging Applications in Power and Smart Materials
4.1 Role in Solar Power Conversion and Storage Space
Titanium dioxide plays a crucial duty in renewable energy technologies, most notably in dye-sensitized solar batteries (DSSCs) and perovskite solar cells (PSCs).
In DSSCs, a mesoporous movie of nanocrystalline anatase works as an electron-transport layer, accepting photoexcited electrons from a color sensitizer and performing them to the external circuit, while its vast bandgap guarantees minimal parasitical absorption.
In PSCs, TiO two works as the electron-selective contact, promoting cost extraction and improving gadget security, although study is ongoing to replace it with less photoactive options to boost durability.
TiO two is additionally explored in photoelectrochemical (PEC) water splitting systems, where it operates as a photoanode to oxidize water right into oxygen, protons, and electrons under UV light, adding to eco-friendly hydrogen manufacturing.
4.2 Integration right into Smart Coatings and Biomedical Gadgets
Cutting-edge applications consist of wise home windows with self-cleaning and anti-fogging abilities, where TiO â‚‚ coverings react to light and moisture to maintain openness and hygiene.
In biomedicine, TiO â‚‚ is examined for biosensing, drug distribution, and antimicrobial implants as a result of its biocompatibility, security, and photo-triggered sensitivity.
As an example, TiO â‚‚ nanotubes expanded on titanium implants can advertise osteointegration while giving local anti-bacterial action under light direct exposure.
In recap, titanium dioxide exhibits the merging of basic products science with practical technological technology.
Its special mix of optical, electronic, and surface chemical residential or commercial properties allows applications ranging from day-to-day consumer products to innovative environmental and energy systems.
As study advances in nanostructuring, doping, and composite design, TiO â‚‚ continues to advance as a cornerstone product in lasting and clever innovations.
