1. Material Attributes and Architectural Style
1.1 Structure and Crystalline Phases of Alumina

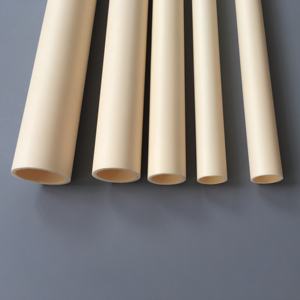

( Alumina Ceramic Tubes)
Alumina (Al Two O SIX) ceramic tubes are largely produced from high-purity light weight aluminum oxide, with pureness degrees normally ranging from 90% to 99.8%, relying on the intended application.
The leading crystalline phase in completely thick, high-temperature sintered tubes is α-alumina (corundum), which displays a trigonal crystal framework and outstanding thermodynamic security.
This stage transition from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and results in a thick, interlocking microstructure that supplies exceptional mechanical toughness and chemical resistance.
Greater pureness grades (≥ 99.5%) make the most of hardness, use resistance, and dielectric performance, while lower-purity solutions may incorporate second stages like mullite or lustrous grain border phases to minimize cost or dressmaker thermal development.
The ability to regulate grain dimension, porosity, and phase composition during processing allows designers to make improvements alumina tubes for particular useful demands across varied commercial domains.
1.2 Mechanical, Thermal, and Electric Residence
Alumina ceramic tubes exhibit a distinct combination of physical homes that make them important popular design atmospheres.
With a Vickers hardness exceeding 1500 HV, they are highly resistant to abrasion and disintegration, outmatching most steels and polymers in wear-prone systems.
Their compressive stamina can reach 2000 MPa, making it possible for architectural usage under high mechanical lots, while flexural stamina usually varies from 300 to 500 MPa, depending upon density and surface area finish.
Thermally, alumina preserves stability as much as 1700 ° C in oxidizing atmospheres, with a reduced coefficient of thermal growth (~ 8 ppm/K), contributing to exceptional thermal shock resistance when correctly made.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or light weight aluminum nitride, it is sufficient for lots of high-temperature applications where electric insulation and structural honesty are prioritized.
Electrically, alumina is an outstanding insulator with volume resistivity > 10 ¹ⴠΩ · centimeters and high dielectric toughness (> 15 kV/mm), making it optimal for electrical feedthroughs, sensor housings, and high-voltage insulation.

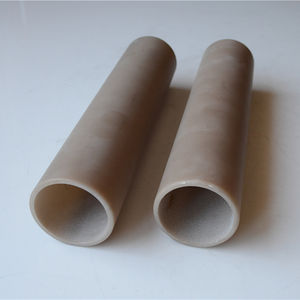

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Forming Methods
The production of alumina ceramic tubes involves innovative developing techniques customized to accomplish accurate dimensions, wall surface thickness uniformity, and surface high quality.
Common techniques include extrusion, isostatic pressing, and slide casting, each suited to different dimension varieties and performance needs.
Extrusion is commonly utilized for long, straight tubes with constant cross-sections, where a plasticized alumina paste is forced with a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, chilly isostatic pressing (CIP) applies consistent pressure from all directions to compact green bodies, minimizing distortion and enhancing density homogeneity.
Slide spreading, involving the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is perfect for facility or large-diameter geometries with variable wall density.
After developing, tubes undergo mindful drying to avoid splitting, complied with by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to achieve full densification and dimensional security.
2.2 Completing and Quality Assurance
Post-sintering procedures such as centerless grinding, splashing, and brightening are used to attain limited resistances, smooth surface area finishes, and precise inner and outer sizes.
Tolerances as tight as ± 0.01 mm are attainable for critical applications in semiconductor processing or logical instrumentation.
Surface roughness can be reduced to Ra < 0.1 µm, reducing bit capturing and improving compatibility with ultra-high vacuum (UHV) or cleanroom atmospheres.
Non-destructive screening methods– including ultrasonic assessment, X-ray radiography, and dye penetrant testing– make sure structural honesty and absence of splits or voids.
Dimensional width utilizing coordinate determining equipments (CMM) or laser scanning validates compliance with design specs, especially for custom or high-volume manufacturing runs.
3. Functional Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of the most engaging benefits of alumina ceramic tubes is their ability to stand up to extreme thermal and chemical problems where metals and polymers stop working.
They stay dimensionally stable and mechanically durable in continual solution at temperature levels above 1500 ° C, making them ideal for heating system liners, thermocouple defense sheaths, and radiant heater tubes.
Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and several acids (other than hydrofluoric and warm phosphoric acid) enables usage in metallurgical and chemical processing equipment.
In oxidizing and minimizing ambiences, alumina does not degrade or catalyze undesirable reactions, protecting procedure pureness in semiconductor and glass production.
This chemical inertness also avoids contamination in high-purity liquid handling systems, including those made use of in pharmaceutical and food processing markets.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma atmospheres, alumina tubes serve as shielding barriers that keep circuit stability under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lights, where they have ionized gases at temperature levels going beyond 1000 ° C while holding up against electric potentials of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes act as dielectric home windows or gas distribution components, withstanding ion barrage and thermal biking without cracking or outgassing.
Their reduced dielectric loss and high arc resistance protect against electrical monitoring and break down, making sure long life span in switchgear and power transmission elements.
These residential properties are critical in maintaining process security and equipment dependability in sophisticated manufacturing and energy systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Commercial Handling Systems
Alumina ceramic tubes are important to a large range of industrial procedures that require durability under extreme problems.
In thermal handling, they work as safety sheaths for thermocouples and burner in kilns, heaters, and warmth therapy devices, protecting sensitive elements from harsh environments and mechanical wear.
In fluid handling, they transfer aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits fast heating and cooling cycles without failing, a crucial benefit in cyclic commercial procedures.
In glass production, alumina tubes guide liquified glass circulations and support creating devices, standing up to erosion from thick, high-temperature melts.
4.2 Advanced Technologies and Future Assimilation
Past typical commercial usages, alumina tubes are discovering new duties in advanced innovations.
In semiconductor fabrication, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) reactors and ion implantation systems, where particle generation and metal contamination need to be lessened.
In clinical gadgets, biocompatible alumina tubes serve as shielding elements in medical devices, oral implants, and analysis sensing units.
Research is exploring functionalized alumina tubes with ingrained sensing units or conductive traces for wise architectural tracking in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming a method to create intricate tube geometries with interior networks or rated make-ups, enabling next-generation heat exchangers and microreactors.
As sectors press toward higher performance, cleaner processes, and greater reliability, alumina ceramic tubes continue to develop as making it possible for parts in the framework of modern technology.
In recap, alumina ceramic tubes represent a fully grown yet dynamically progressing course of crafted products, combining extraordinary thermal, mechanical, and electrical performance in a single not natural conduit.
Their adaptability throughout severe environments guarantees their continued significance in both developed commercial systems and emerging high-tech applications.
